Our factory has independently developed and designed a unique cage-type radiator. It has been put into mass production and is available for customization and purchase.
Patent Certifications:
European Invention Patent: EP4321829
EU Design Patent: No 015014707-0001
Chinese Invention Patent (ZL 2022 1 0953768.5)
Chinese Utility Model Patent (ZL 2022 2 2105058.5)
Chinese Design Patent (ZL 2022 3 0518865.2)
Structural Strength:

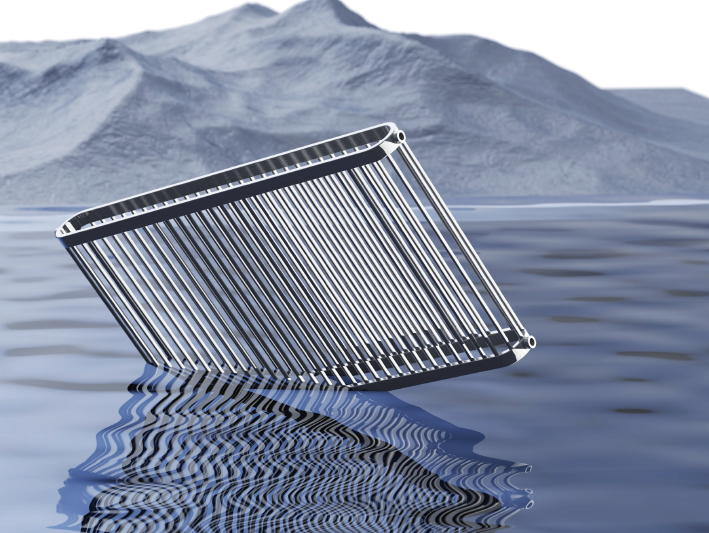

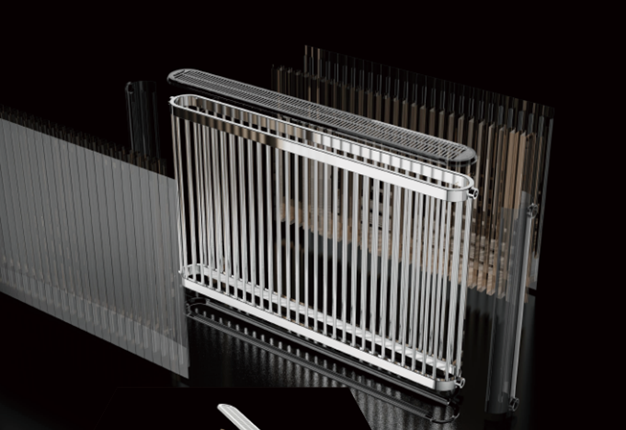

Welded by upper/lower square main water channels and middle round tubes to form a closed water circulation system. Withstands pressure >2MPa (far exceeding traditional panel radiators) and ensures long service life.
Key Design:

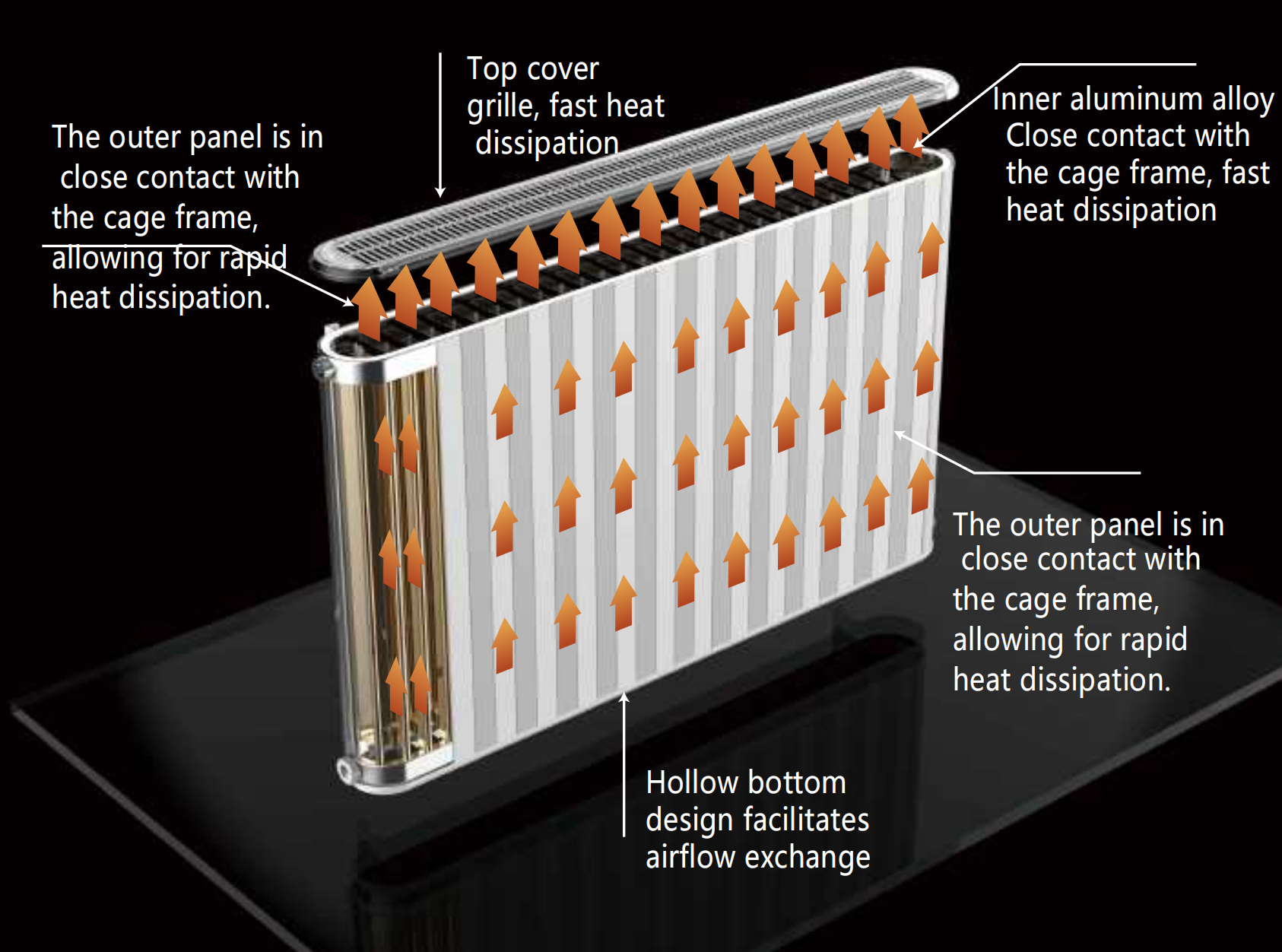

Equipped with aluminum alloy fins for enhanced heat transfer; adopts natural convection.
Airflow Optimization:
Grilled top cover and hollowed-out bottom promote air exchange, accelerating heat release and ensuring fast heating.
Anti-Corrosion:
Main water channels undergo hot-dip galvanization to resist rust.
Leak-Proof Guarantee:
24-hour pressure test at 2MPa before delivery to ensure no welding leaks.
Safety Design:

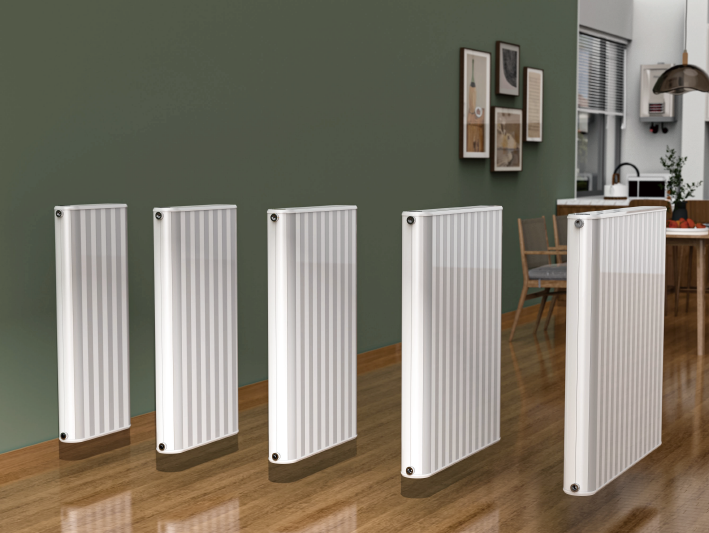

Arc-shaped side panels prevent collisions, balancing aesthetics and practicality.
Appearance Options:

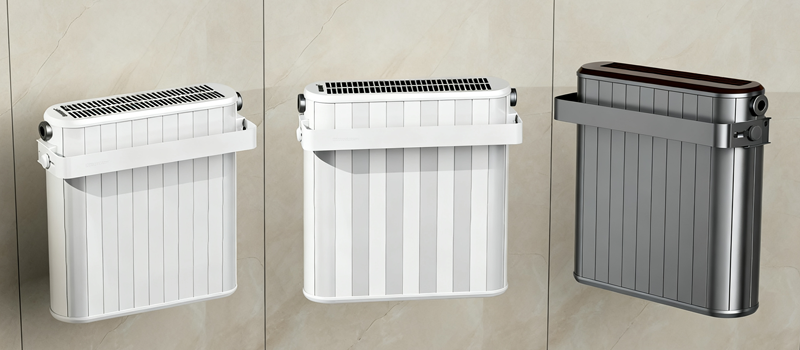

Outer panels available in gray-white stripe, pure white, and black to match different interior styles.

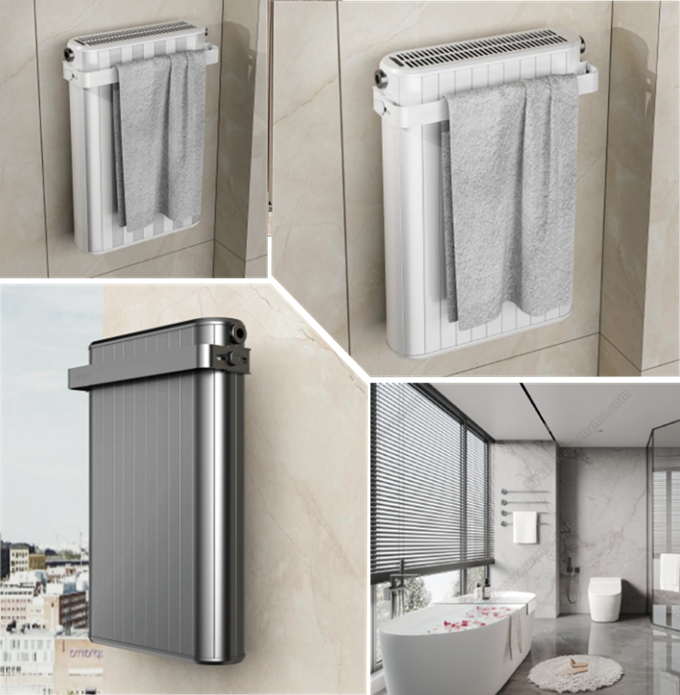

Optional Accessories:
Towel rack (clothes hanger) as standard for bathroom series, and optional for regular series.

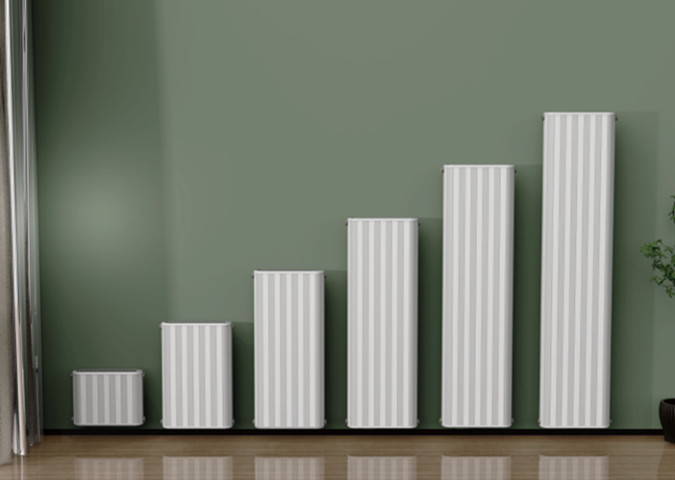

| Height | Optional Length (mm) | Model (HxL) Example | Heat Output (W) Range | Working Pressure | Water Inlet Mode | External Dimension (mm) (L+30)×Width×Height |
|---|---|---|---|---|---|---|
| 300mm | 1000-2400 | 300x1000, 300x2400 | 1261-3027 | 2MPa | Side Inlet/Outlet | 1030×110×300, 2430×110×300 |
| 600mm | 400-2400 | 600x400, 600x2400 | 921-5527 | 2MPa | Side Inlet/Outlet | 430×110×600, 2430×110×600 |
| 900mm | 400-1000 | 900x400, 900x1000 | 1255-3138 | 2MPa | Side Inlet/Outlet | 430×110×900, 1030×110×900 |
| 1500mm | 400-600 | 1500x400, 1500x600 | 1910-2865 | 2MPa | 1. Side Inlet/Outlet (center distance 1447mm, standard); 2. Bottom Inlet/Outlet | 430×110×1500, 630×110×1500 |
| 1800mm | 400-600 | 1800x400, 1800x600 | 2236-3355 | 2MPa | 1. Side Inlet/Outlet (center distance 1747mm, standard); 2. Bottom Inlet/Outlet | 430×110×1800, 630×110×1800 |
| Model | Color | External Dimension (mm) (L+30)×Width×Height | Heat Output (W) | Working Pressure | Water Inlet Mode | Net Weight (Kg) |
|---|---|---|---|---|---|---|
| 600x400 | White, Black, Gray-White Stripe | 430×110×600 | 921 | 2MPa | Bottom Inlet/Outlet (center distance 133mm) | 9.1 |
| 400x400 | White, Black, Gray-White Stripe | 430×110×400 | 630 | 2MPa | - | 7.5 |
Space Reservation:
Keep >10cm unobstructed space at the top and bottom (no covering).
Reserve >15mm space on both sides (to accommodate 15mm-protruding nozzles).
Maintain 50mm distance between the back of the radiator and the wall.
Bracket Fixing:
Use M8 metal expansion screws to fix 2 mounting brackets on a solid wall (based on the horizontal spacing "L" of the brackets).
Airflow Guarantee:
The bottom is the air inlet (keep ≥10cm from the ground); the top is the air outlet (keep unobstructed for heat diffusion).
Inlet Mode Options:
Side-top inlet/side-bottom outlet, cross-side top inlet/bottom outlet, cross-side bottom inlet/outlet, or bottom inlet/outlet.
